SYSTEM DIAGRAM

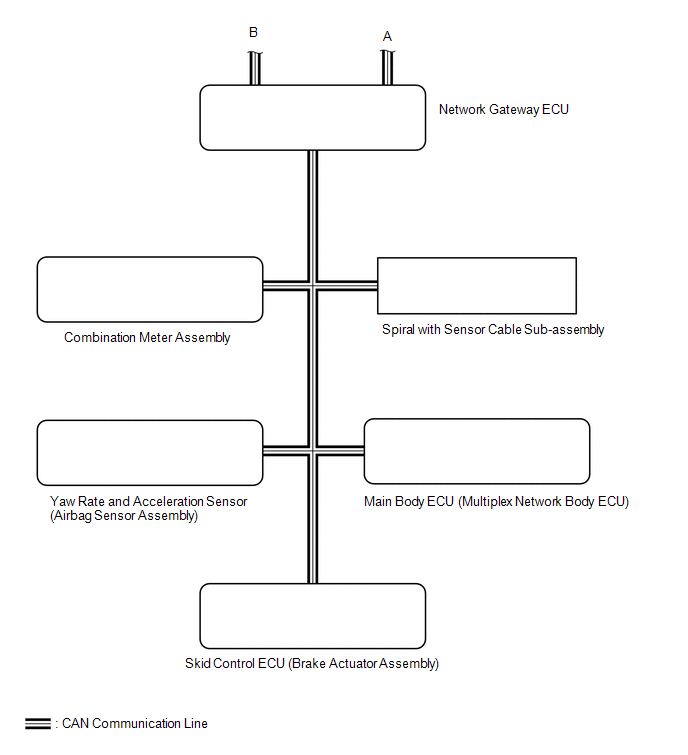

Communication Table

Sender ECU

Receiver ECU

Signal

Line

Forward Recognition Camera

Combination Meter Assembly

  • Lane departure alert indicator light signal
  • Lane marker signal
  • Forward Recognition Camera malfunction signal
  • LDA customization information
  • Break message and exertion level display
  • Lane departure alert buzzer signal
  • Lane departure alert main switch operation signal

CAN

ECM

Forward Recognition Camera

  • Shift position signal (P, R, N, D)
  • Vehicle specification information (2WD/4WD information, conventional/hybrid information)

CAN

Skid Control ECU (Brake Actuator Assembly)

  • Wheel speed signal
  • Wheel speed sensor malfunction signal
  • Under VSC control
  • Under TRAC control
  • Airbag sensor assembly zero point signal
  • Airbag sensor assembly zero point error signal

CAN

Combination Meter Assembly

  • Turn signal light switch signal
  • Vehicle speed tolerance signal

CAN

Spiral with Sensor Cable Sub-assembly

  • Steering signal
  • Steering angle sensor malfunction signal

CAN

Yaw Rate and Acceleration Sensor (Airbag Sensor Assembly)

  • Yaw rate sensor signal
  • Yaw rate sensor voltage signal
  • Yaw rate sensor malfunction signal

CAN

Main Body ECU (Multiplex Network Body ECU)

  • Country specification information signal
  • Steering wheel information signal

CAN

ECM

Accelerator opening angle percentage signal

CAN
