Toyota Tundra Service Manual: Wireless Door Lock Buzzer

Components

COMPONENTS

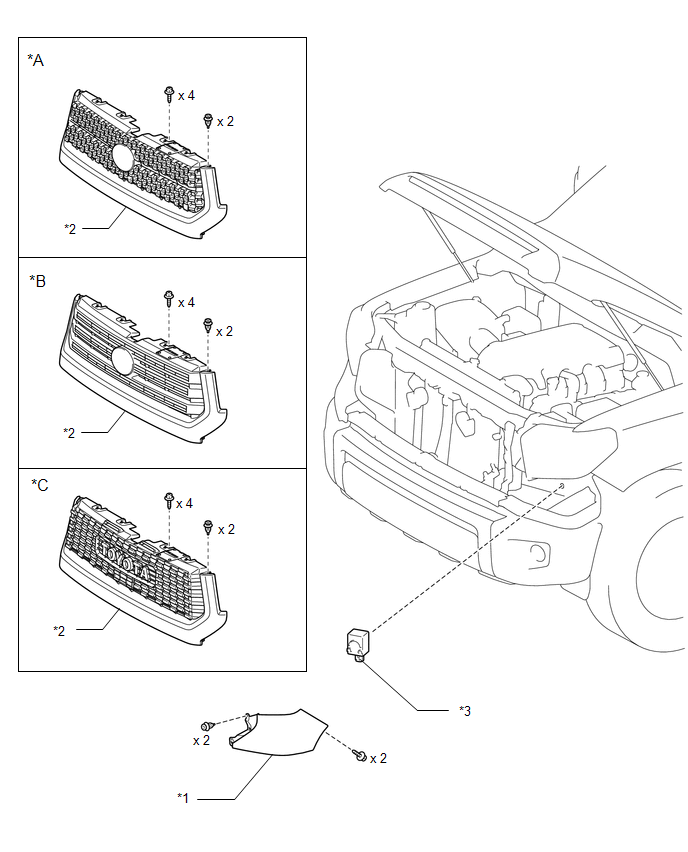

ILLUSTRATION

*A

for Type A

*B

for Type B

*C

for Type C

-

-

*1

FRONT END PANEL LH

*2

RADIATOR GRILLE SUB-ASSEMBLY

*3

WIRELESS DOOR LOCK BUZZER

-

-

Installation

INSTALLATION

PROCEDURE

1. INSTALL WIRELESS DOOR LOCK BUZZER

(a) Attach the clamp to install the wireless door lock buzzer.

(b) Connect the connector.

2. INSTALL FRONT END PANEL LH

3. INSTALL RADIATOR GRILLE SUB-ASSEMBLY

Removal

REMOVAL

PROCEDURE

1. REMOVE RADIATOR GRILLE SUB-ASSEMBLY

2. REMOVE FRONT END PANEL LH

3. REMOVE WIRELESS DOOR LOCK BUZZER

(a) Disconnect the connector.

(b) Detach the clamp and remove the wireless door lock buzzer.
