INSPECTION

PROCEDURE

1. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (for Standard)

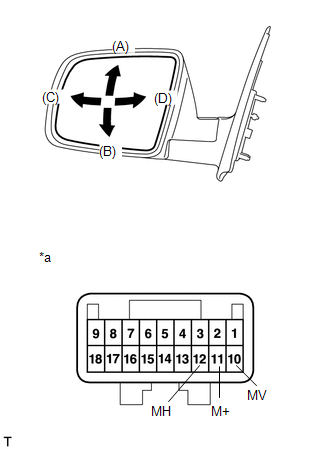

(a) Check the outer mirror motor operation.

(1) Apply battery voltage and check operation of the mirror face.

OK:

Battery Connection

Specified Condition

Positive (+) → 10 (MV)

Negative (-) → 11 (M+)

Turns upward (A)

Positive (+) → 11 (M+)

Negative (-) → 10 (MV)

Turns downward (B)

Positive (+) → 12 (MH)

Negative (-) → 11 (M+)

Turns left (C)

Positive (+) → 11 (M+)

Negative (-) → 12 (MH)

Turns right (D)
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly LH)

If the result is not as specified, replace the outer rear view mirror assembly LH.

(b) w/ Retract Mirror:

Check the retractable mirror's movement.

(1) For each position: Disconnect the battery, set the mirror position by hand, connect the battery, and check the retractable mirror's movement.

OK:

Battery Connection

Mirror Position

Specified Condition

Positive (+) → 7 (MR)

Negative (-) → 8 (MF)

Forward position (A)

Moves from (A) to retracted position (E)

Positive (+) → 8 (MF)

Negative (-) → 7 (MR)

Forward position (A)

Does not move

Positive (+) → 7 (MR)

Negative (-) → 8 (MF)

Position between forward position (A) and driving position (C)

Moves from (B) to retracted position (E)

Positive (+) → 8 (MF)

Negative (-) → 7 (MR)

Position between forward position (A) and driving position (C)

Moves from (B) to forward position (A)

Positive (+) → 7 (MR)

Negative (-) → 8 (MF)

Driving position (C)

Moves from (C) to retracted position (E)

Positive (+) → 8 (MF)

Negative (-) → 7 (MR)

Driving position (C)

Does not move

Positive (+) → 7 (MR)

Negative (-) → 8 (MF)

Position between driving position (C) and retracted position (E)

Moves from (D) to retracted position (E)

Positive (+) → 8 (MF)

Negative (-) → 7 (MR)

Position between driving position (C) and retracted position (E)

Moves from (D) to driving position (C)

Positive (+) → 7 (MR)

Negative (-) → 8 (MF)

Retracted position (E)

Does not move

Positive (+) → 8 (MF)

Negative (-) → 7 (MR)

Retracted position (E)

Moves from (E) to driving position (C)

NOTICE:

  • Disconnect and reconnect the battery between each mirror position check.
  • Do not apply battery voltage when moving the mirror by hand into each mirror position.
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly LH)

If the result is not as specified, replace the outer rear view mirror assembly LH.

(c) w/ EC Mirror:

Check the EC mirror operation.

NOTICE:

Do not apply a voltage of 1.5 V or higher.

(1) Connect a 1.5 V dry-cell battery.

(2) Apply 1.5 V dry-cell battery voltage and check operation of the mirror face as shown in the table and illustration.

OK:

Battery Connection

Specified Condition

1.5 V dry-cell Positive (+) → 14 (EC+)

1.5 V dry-cell Negative (-) → 13 (EC-)

Mirror surface becomes dark
Text in Illustration

*a

Bright

*b

Dark

*c

Component without harness connected

(Outer Rear View Mirror Assembly LH)

If the result is not as specified, replace the outer rear view mirror assembly LH.

(d) w/ Outer Mirror Light:

Check the door mirror foot light.

(1) Apply battery voltage to the s of the connector, and check the illumination condition.

OK:

Battery Connection

Specified Condition

Positive (+) → 6 (MLP)

Negative (-) → 5 (MLP-)

Door mirror foot light illuminates
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly LH)

If the result is not as specified, replace the outer mirror light assembly LH.

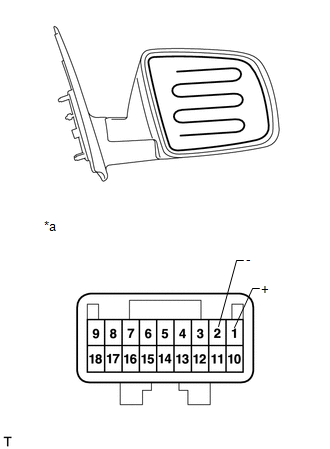

(e) w/ Mirror Heater:

Check the mirror heater.

(1) Apply battery voltage and check the operation of the mirror heater.

OK:

Battery Connection

Specified Condition

Positive (+) → 1 (+)

Negative (-) → 2 (-)

Mirror becomes warm
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly LH)

HINT:

It will take a short time for the mirror to become warm.

If the result is not as specified, replace the outer rear view mirror assembly LH.

(f) w/ Turn Signal Indicator:

Check the turn signal indicator.

(1) Apply battery voltage and check the operation of the turn signal indicator.

OK:

Battery Connection

Specified Condition

Positive (+) → 4 (TS+)

Negative (-) → 3 (TS-)

Turn signal indicator illuminates
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly LH)

If the result is not as specified, replace the outer rear view mirror assembly LH.

(g) w/ Blind Spot Monitor System:

Check the blind spot monitor indicator.

(1) w/o EC Mirror:

Apply battery voltage and check the operation of the blind spot monitor indicator.

OK:

Battery Connection

Specified Condition

Positive (+) → 18 (BSM+)

Negative (-) → 5 (BSM-)

Blind spot monitor indicator light illuminates
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly LH)

If the result is not as specified, replace the outer rear view mirror assembly LH.

(2) w/ EC Mirror:

Apply battery voltage and check the operation of the blind spot monitor indicator.

OK:

Battery Connection

Specified Condition

Positive (+) → 9 (BSM+)

Negative (-) → 5 (BSM-)

Blind spot monitor indicator light illuminates
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly LH)

If the result is not as specified, replace the outer rear view mirror assembly LH.

2. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY LH (for Extended Type)

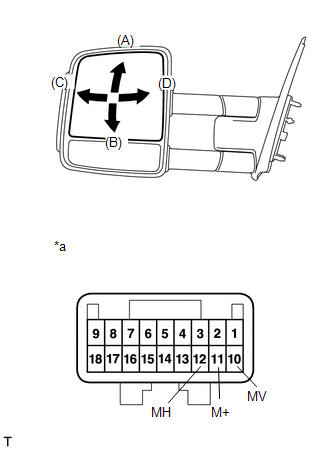

(a) Check the outer mirror motor operation.

(1) Apply battery voltage and check operation of the mirror face.

OK:

Battery Connection

Specified Condition

Positive (+) → 10 (MV)

Negative (-) → 11 (M+)

Turns upward (A)

Positive (+) → 11 (M+)

Negative (-) → 10 (MV)

Turns downward (B)

Positive (+) → 12 (MH)

Negative (-) → 11 (M+)

Turns right (D)

Positive (+) → 11 (M+)

Negative (-) → 12 (MH)

Turns left (C)
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly LH)

If the result is not as specified, replace the outer rear view mirror assembly LH.

(b) Check the door mirror turn indicator.

(1) Apply battery voltage to the s of the connector, and check the LED illumination condition.

OK:

Battery Connection

Specified Condition

Positive (+) → 4 (TRNL)

Negative (-) → 3 (GND)

Door mirror turn indicator illuminates
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly LH)

If the result is not as specified, replace the outer rear view mirror assembly LH.

(c) w/ Running Light:

Check the running Light.

(1) Apply battery voltage to the s of the connector, and check the LED illumination condition.

OK:

Battery Connection

Specified Condition

Positive (+) → 9 (RL)

Negative (-) → 3 (GND)

Running light illuminates
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly LH)

If the result is not as specified, replace the outer rear view mirror assembly LH.

(d) Check the mirror heater.

(1) Apply battery voltage and check the operation of the mirror heater.

OK:

Battery Connection

Specified Condition

Positive (+) → 1 (+)

Negative (-) → 2 (-)

Mirror becomes warm
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly LH)

HINT:

It will take a short time for the mirror to become warm.

If the result is not as specified, replace the outer rear view mirror assembly LH.

3. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (for Standard)

(a) Check the outer mirror motor operation.

(1) Apply battery voltage and check operation of the mirror face.

OK:

Battery Connection

Specified Condition

Positive (+) → 10 (MV)

Negative (-) → 11 (M+)

Turns upward (A)

Positive (+) → 11 (M+)

Negative (-) → 10 (MV)

Turns downward (B)

Positive (+) → 12 (MH)

Negative (-) → 11 (M+)

Turns right (D)

Positive (+) → 11 (M+)

Negative (-) → 12 (MH)

Turns left (C)
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly RH)

If the result is not as specified, replace the outer rear view mirror assembly RH.

(b) w/ Retract Mirror:

Check the retractable mirror's movement.

(1) For each position: Disconnect the battery, set the mirror position by hand, connect the battery, and check the retractable mirror's movement.

OK:

Battery Connection

Mirror Position

Specified Condition

Positive (+) → 7 (MR)

Negative (-) → 8 (MF)

Forward position (A)

Moves from (A) to retracted position (E)

Positive (+) → 8 (MF)

Negative (-) → 7 (MR)

Forward position (A)

Does not move

Positive (+) → 7 (MR)

Negative (-) → 8 (MF)

Position between forward position (A) and driving position (C)

Moves from (B) to retracted position (E)

Positive (+) → 8 (MF)

Negative (-) → 7 (MR)

Position between forward position (A) and driving position (C)

Moves from (B) to forward position (A)

Positive (+) → 7 (MR)

Negative (-) → 8 (MF)

Driving position (C)

Moves from (C) to retracted position (E)

Positive (+) → 8 (MF)

Negative (-) → 7 (MR)

Driving position (C)

Does not move

Positive (+) → 7 (MR)

Negative (-) → 8 (MF)

Position between driving position (C) and retracted position (E)

Moves from (D) to retracted position (E)

Positive (+) → 8 (MF)

Negative (-) → 7 (MR)

Position between driving position (C) and retracted position (E)

Moves from (D) to driving position (C)

Positive (+) → 7 (MR)

Negative (-) → 8 (MF)

Retracted position (E)

Does not move

Positive (+) → 8 (MF)

Negative (-) → 7 (MR)

Retracted position (E)

Moves from (E) to driving position (C)

NOTICE:

  • Disconnect and reconnect the battery between each mirror position check.
  • Do not apply battery voltage when moving the mirror by hand into each mirror position.
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly RH)

If the result is not as specified, replace the outer rear view mirror assembly RH.

(c) w/ EC Mirror:

Check the EC mirror operation.

NOTICE:

Do not apply a voltage of 1.5 V or higher.

(1) Connect a 1.5 V dry-cell battery.

(2) Apply 1.5 V dry-cell battery voltage and check operation of the mirror face as shown in the table and illustration.

OK:

Battery Connection

Specified Condition

1.5 V dry-cell Positive (+) → 14 (EC+)

1.5 V dry-cell Negative (-) → 13 (EC-)

Mirror surface becomes dark
Text in Illustration

*a

Bright

*b

Dark

*c

Component without harness connected

(Outer Rear View Mirror Assembly RH)

If the result is not as specified, replace the outer rear view mirror assembly RH.

(d) w/ Outer Mirror Light:

Check the door mirror foot light.

(1) Apply battery voltage to the s of the connector, and check the illumination condition.

OK:

Battery Connection

Specified Condition

Positive (+) → 6 (MLP)

Negative (-) → 5 (MLP-)

Door mirror foot light illuminates
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly RH)

If the result is not as specified, replace the outer mirror light assembly RH.

(e) w/ Mirror Heater:

Check the mirror heater.

(1) Apply battery voltage and check the operation of the mirror heater.

OK:

Battery Connection

Specified Condition

Positive (+) → 1 (+)

Negative (-) → 2 (-)

Mirror becomes warm
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly RH)

HINT:

It will take a short time for the mirror to become warm.

If the result is not as specified, replace the outer rear view mirror assembly RH.

(f) w/ Turn Signal Indicator:

Check the turn signal indicator.

(1) Apply battery voltage and check the operation of the turn signal indicator.

OK:

Battery Connection

Specified Condition

Positive (+) → 4 (TS+)

Negative (-) → 3 (TS-)

Turn signal indicator illuminates
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly RH)

If the result is not as specified, replace the outer rear view mirror assembly RH.

(g) w/ Blind Spot Monitor System:

Check the blind spot monitor indicator.

(1) w/o EC Mirror:

Apply battery voltage and check the operation of the blind spot monitor indicator.

OK:

Battery Connection

Specified Condition

Positive (+) → 18 (BSM+)

Negative (-) → 5 (BSM-)

Blind spot monitor indicator light illuminates
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly RH)

If the result is not as specified, replace the outer rear view mirror assembly RH.

(2) w/ EC Mirror:

Apply battery voltage and check the operation of the blind spot monitor indicator.

OK:

Battery Connection

Specified Condition

Positive (+) → 9 (BSM+)

Negative (-) → 5 (BSM-)

Blind spot monitor indicator light illuminates
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly RH)

If the result is not as specified, replace the outer rear view mirror assembly RH.

4. INSPECT OUTER REAR VIEW MIRROR ASSEMBLY RH (for Extended Type)

(a) Check the outer mirror motor operation.

(1) Apply battery voltage and check operation of the mirror face.

OK:

Battery Connection

Specified Condition

Positive (+) → 10 (MV)

Negative (-) → 11 (M+)

Turns upward (A)

Positive (+) → 11 (M+)

Negative (-) → 10 (MV)

Turns downward (B)

Positive (+) → 12 (MH)

Negative (-) → 11 (M+)

Turns left (C)

Positive (+) → 11 (M+)

Negative (-) → 12 (MH)

Turns right (D)
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly RH)

If the result is not as specified, replace the outer rear view mirror assembly RH.

(b) Check the door mirror turn indicator.

(1) Apply battery voltage to the s of the connector, and check the LED illumination condition.

OK:

Battery Connection

Specified Condition

Positive (+) → 4 (TRNR)

Negative (-) → 3 (GND)

Door mirror turn indicator illuminates
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly RH)

If the result is not as specified, replace the outer rear view mirror assembly RH.

(c) w/ Running light:

Check the running light.

(1) Apply battery voltage to the s of the connector, and check the LED illumination condition.

OK:

Battery Connection

Specified Condition

Positive (+) → 9 (RR)

Negative (-) → 3 (GND)

Running light illuminates
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly RH)

If the result is not as specified, replace the outer rear view mirror assembly RH.

(d) Check the mirror heater.

(1) Apply battery voltage and check the operation of the mirror heater.

OK:

Battery Connection

Specified Condition

Positive (+) → 1 (+)

Negative (-) → 2 (-)

Mirror becomes warm
Text in Illustration

*a

Component without harness connected

(Outer Rear View Mirror Assembly RH)

HINT:

It will take a short time for the mirror to become warm.

If the result is not as specified, replace the outer rear view mirror assembly RH.
    Components

    Installation

    See More:

    Toyota Tundra Service Manual > Condenser: On-vehicle Inspection
    ON-VEHICLE INSPECTION PROCEDURE 1. INSPECT COOLER CONDENSER ASSEMBLY (a) If the fins of the cooler condenser are dirty, clean them with water. Dry the fins with compressed air. NOTICE: Do not damage the fins of the condenser. (b) If a fin of the cooler condenser is bent, straighten it using a screwd ...

    Toyota Tundra Owners Manual

    Toyota Tundra Service Manual

    © 2024 Copyright www.ttundra.com
    0.0173
