Toyota Tundra Service Manual: Removal

Toyota Tundra Service Manual / Vehicle Interior / Seat / Front Seatback Heater(for Power Seat) / Removal

REMOVAL

CAUTION / NOTICE / HINT

CAUTION:

Wear protective gloves. Sharp areas on the parts may injure your hands.

HINT:

  • Use the same procedure for the RH and LH sides.
  • The procedure listed below is for the LH side.

PROCEDURE

1. REMOVE FRONT SEAT ASSEMBLY LH

(See page )

2. REMOVE FRONT SEAT CUSHION SHIELD LH

3. REMOVE FRONT INNER NO. 1 SEAT CUSHION SHIELD LH

4. REMOVE SEPARATE TYPE FRONT SEATBACK ASSEMBLY

5. REMOVE SEPARATE TYPE FRONT SEATBACK COVER

6. REMOVE FRONT SEATBACK HEATER ASSEMBLY LH

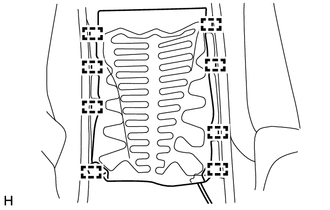

(a) Remove the 8 tack pins to remove the front seatback heater assembly LH.
