INSTALLATION PROCEDURE 1. INSTALL VSC OFF SWITCH

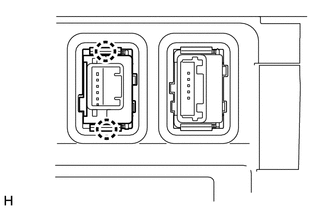

(b) Connect the VSC OFF switch connector. 2. INSTALL NO. 2 SWITCH HOLE BASE 3. INSTALL LOWER INSTRUMENT PANEL FINISH PANEL SUB-ASSEMBLY LH 4. INSTALL COWL SIDE TRIM BOARD LH 5. INSTALL FRONT DOOR SCUFF PLATE LH (a) for Double Cab: (See page (b) for CrewMax: (See page
6. INSTALL INSTRUMENT SIDE PANEL LH |
Toyota Tundra Service Manual > Vehicle Stability Control System: Open in Front Speed Sensor RH (C1330-C1467)
DESCRIPTION Each speed sensor detects wheel speed and sends signals to the skid control ECU (brake actuator assembly). These signals are used by the ABS control. HINT: The output voltage values shown below are for when the vehicle wire harnesses are connected to the skid control ECU (brake actuator ...
